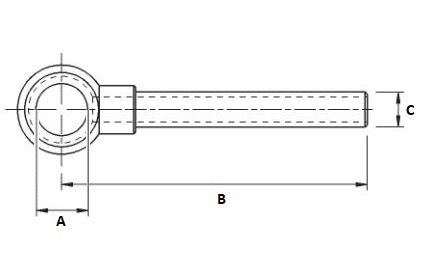

| REFERENCIA | DESENHO TECNICO | PART NUMBER | A | B | C |
|---|---|---|---|---|---|
| (GAS) | MM | ||||
| 125618 |
|
OC1/4 | 1/4 | 38 | Ø 12 |
| 113438 |
|
OC3/8 | 3/8 | 40 | Ø 12 |
| 125619 |
|
OC1/2 | 1/2 | 44 | Ø 15 |
| 125620 |
|
OM1/4 | 1/4 | 112 | Ø 12 |
| 125621 |
|
OM3/8 | 3/8 | 106 | Ø 12 |
| 125623 |
|
OL1/4 | 1/4 | 205 | Ø 12 |
| 125624 |
|
OL3/8 | 3/8 | 199 | Ø 12 |
| 125625 |
|
OL1/2 | 1/2 | 202 | Ø 15 |
| 125626 |
|
OXL3001/4 | 1/4 | 305 | Ø 12 |
| 125628 |
|
OXL4001/4 | 1/4 | 405 | Ø 12 |
| 125630 |
|
OXL5001/4 | 1/4 | 505 | Ø 12 |
| 125627 |
|
OXL3003/8 | 3/8 | 300 | Ø 12 |
| 125629 |
|
OXL4003/8 | 3/8 | 400 | Ø 12 |
| 125631 |
|
OXL5003/8 | 3/8 | 500 | Ø 12 |
| 144497 |
|
OXL6003/8 | 3/8 | 600 | Ø 12 |
| 125632 |
|
OCN1/4 | 1/4 | 14 | 1/4 |
| 113440 |
|
OCN3/8 | 3/8 | 16 | 3/8 |
| 125634 |
|
ODO1/4X12L | 1/4 | 43.5 | Ø 12 |
| 113437 |
|
ODO3/8X12L | 3/8 | 38.5 | Ø 12 |
| 125636 |
|
ODO18X12L | M18 | 41 | Ø 12 |
| 125635 |
|
ODO1/2X15L | 1/2 | 44.5 | Ø 15 |
| 113439 |
|
Vf3/8 | 3/8 | - | - |
